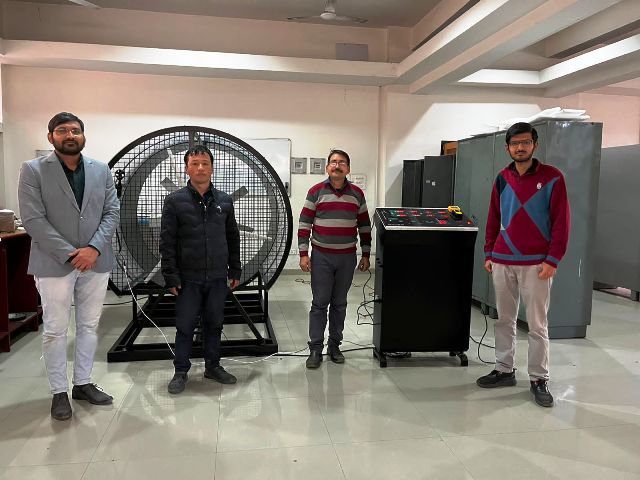

Ecosense Installed Wind Energy Training System at Department of Renewable Energy Engineering, College of Agricultural Engineering & Post Harvest Technology.

Wind Energy Training System is a scaled down version of actual standalone Wind Turbine power plant. This system facilitates the students with working and configurable model of wind turbine. This system gives the insight about individual components and consequences of changing the operating points of any wind turbine defined in terms of wind speed and pitch angle. Students can learn concepts like I-V characteristic, cut-off, cut-in speed etc.

This system is developed such that it can work inside a closed laboratory with an artificial wind generating unit, which makes it weather proof. User can access and utilize the system capability at any time of the day without worrying about the actual climatic conditions. This system uses a big fan mounted on top of an Induction motor, the speed of which can be controlled by a Variable Frequency Drive. User can control the speed of motor which further controls the Wind speed using the Variable Frequency Drive. The variable wind speed prompts Wind Turbine to convert Wind Energy into Electrical energy and outputs three phase electrical output. The three-phase electrical output is connected with a three-phase rectifier which converts electrical output from AC to DC. The DC output is then further connected to a Charge controller and Battery. A DC load can be connected at Charge controller output. The Battery is further connected to a home inverter which provides clean useable AC electricity.
