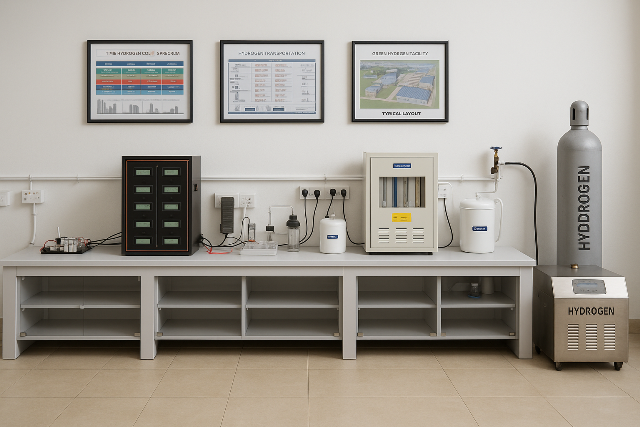

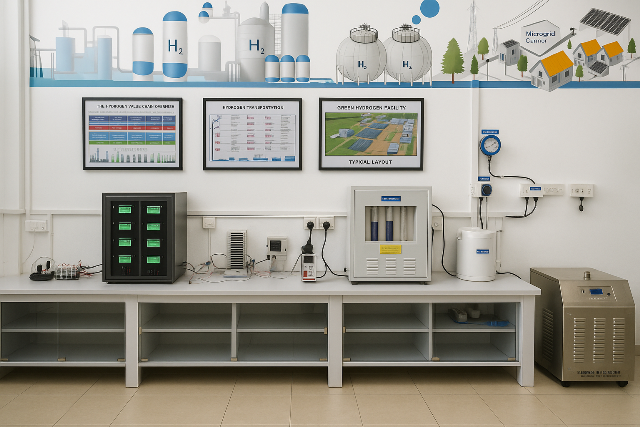

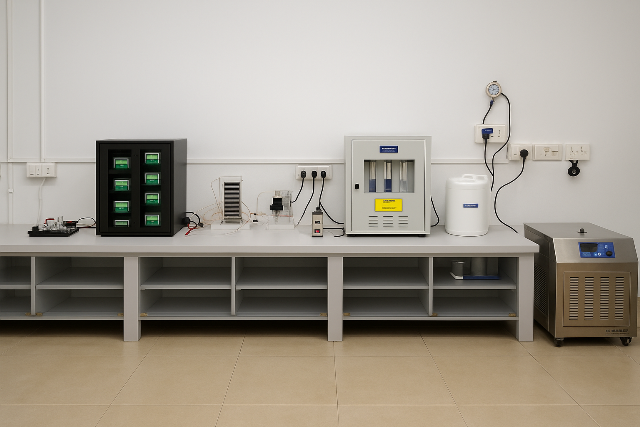

Green Hydrogen Generation, Storage and Utilization System

The Green Hydrogen Generation, Storage and Utilization System is a customizable experimental and research platform designed to facilitate the comprehensive study of the entire green hydrogen cycle. It enables users to explore every stage—from renewable energy integration (via Solar PV arrays or PV emulator systems) and water purification, to hydrogen generation using a choice of electrolyzers (PEM, AEM, or Alkaline), followed by safe storage and final utilization through a PEM fuel cell. This system offers a complete hands-on learning environment, making it ideal for academic institutions, research laboratories, and technology training centers focused on advancing hydrogen energy technologies with a strong focus on safety, control, and performance analysis.

Key Features

Complete Hydrogen Cycle in One System
Enables practical experiments across all stages: electrolysis to hydrogen drying to safe gas storage to fuel cell-based power output.
Choice of Electrolyzer Type
Configure the system with any one of the following electrolyzers:PEM (Proton Exchange Membrane); AEM (Anion Exchange Membrane); Alkaline Electrolyzer. Each variant includes suitable purification, control, and safety features.

Multiple Power Source Options
Users can power the electrolyzer using: A real Solar PV Array or A Solar PV Simulator or standard AC grid electricity. This flexibility allows year-round experimentation in both lab and field environments.
Hydrogen Leak Detection & Safety System
Integrated leak detectors, solenoid valves, and NRVs provide real-time safety with auto-shutdown capability.
Real-Time Monitoring and Control
View live parameters such as voltage, current, hydrogen pressure, flow rate, and power output—ideal for student-led experiments and lab reporting.
Fuel Cell Utilization for DC & AC Loads
Stored hydrogen powers a PEM fuel cell, which is connected to a battery and inverter for running real-world AC/DC loads.
Simultaneous Electrolyzer & Fuel Cell Operation
Designed to support real-time, simultaneous operation of the electrolyzer and fuel cell, allowing users to study dynamic energy flows, power balancing, and hybrid system behavior within a single experimental setup.
Software-Based Control (Optional)
Especially useful for research applications, the optional software allows logging, control, and custom algorithm testing (standard in AEM configuration).
Compact, Indoor-Ready Design
All components are enclosed in a lab-friendly bench-mounted setup with clear labeling, plug-and-play ports, and easy reconfiguration options.

Learning Module

Hydrogen Production & Storage

Operate AEM / PEM / Alkaline electrolyzer and study H₂ generation rates

Fuel Cell Power Generation

Run PEM fuel cell using stored hydrogen and log V-I, power, and efficiency curves
Interface with charge controller, battery bank, and inverter
Supply real AC and DC loads and analyze dynamic response
Investigate energy flow and losses across the full hydrogen-to-electricity cycle

Safety, Control & Research Experimentation

Simulate hydrogen leaks and observe automatic safety response
Learn practical implementation of NRVs, solenoids, relief valves
