Solar Concentrator Training System

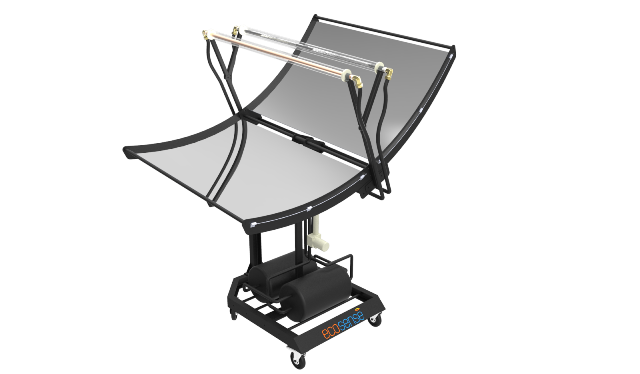

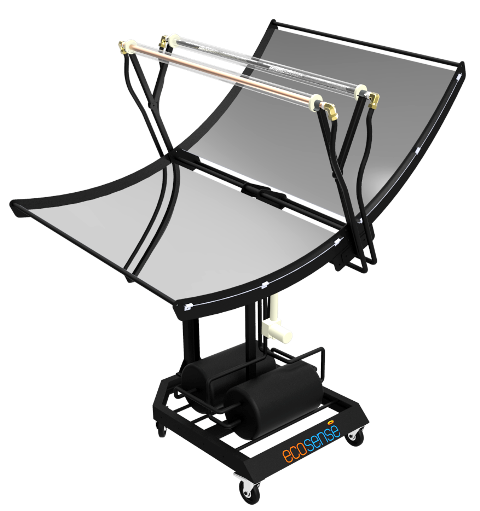

The Solar Concentrator Training System is a compact and modular experimental platform designed to replicate the functionality of a solar parabolic trough collector-based water heating system. Comprising parabolic reflectors, absorber tubes, a sun tracking mechanism, piping, storage tanks, and a control panel, this system facilitates hands-on learning and in-depth research in solar thermal technologies. Its adaptability to various working fluids, absorber materials, insulation thicknesses, and storage configurations makes it an invaluable tool for both educational institutions and research laboratories aiming to explore heat transfer dynamics and system efficiency under diverse conditions.

Key Features

Dual-Axis Sun Tracking Mechanism
Ensures optimal solar energy capture by continuously aligning the parabolic reflector with the sun's position throughout the day.
Versatile Absorber Tubes
Equipped with two absorber tubes compatible with different materials (copper and stainless steel) and fluids (water and oil), allowing comparative studies on thermal performance.
Flexible Working Fluid Options
Supports experimentation with various fluids, including water and thermal oils, to analyze their impact on heat transfer efficiency.
Adjustable Flow Rates
Provides the ability to vary fluid flow rates, enabling the study of their effects on system performance and heat absorption.
Modular Storage Tanks
Features two stainless steel storage tanks—one with an integrated heat exchanger—facilitating experiments with different storage configurations.

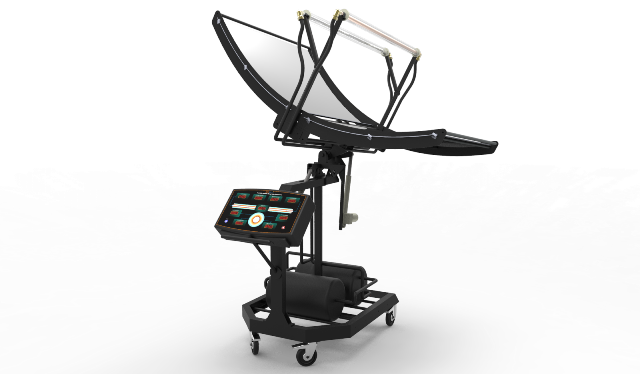

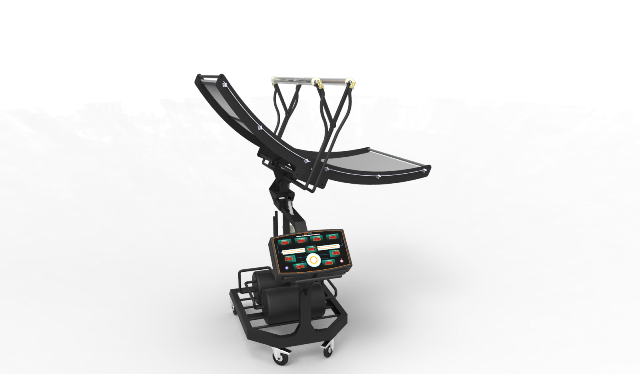

Comprehensive Measurement Panel
Includes sensors and meters for real-time monitoring of temperature, pressure, flow rate, solar radiation, and wind speed, enhancing data accuracy and analysis.
Indoor Experimentation Capability
Designed to accommodate indoor experiments using artificial light sources, ensuring uninterrupted research regardless of weather conditions.
Data Logging with GUI
Comes with a graphical user interface that allows real-time data visualization and logging, streamlining the analysis process.

Learning Module

Performance Evaluation of Parabolic Trough Collector Systems

Develop a comprehensive understanding of parabolic trough solar concentrators by analyzing key performance parameters such as:

Overall thermal efficiency (η)
Heat removal factor (FR)
Heat loss coefficient (UL)
Learn how different operating conditions—like solar irradiance, inlet fluid temperature, and ambient temperature—affect energy output. Use real-time data monitoring and dual-axis sun tracking to ensure accurate, high-resolution analysis of system behavior.

Working Fluid, Flow Rate, and Thermal Storage Analysis

Explore the impact of system variables on solar heat transfer efficiency:

Compare the performance of different working fluids such as water and thermal oil in real-time experiments.
Study how fluid flow rate variations influence heat absorption and identify optimal operating conditions.
Conduct comparative analysis using modular storage tanks, including one with a built-in heat exchanger, to understand storage behavior and thermal retention dynamics.

Environmental and Structural Optimization Experiments

Understand how design and environmental factors affect the efficiency of solar concentrator systems:

Analyze the effect of insulation thickness on heat retention and collector performance.
Evaluate how inlet fluid temperature variations impact system responsiveness and thermal gain.
Investigate the influence of wind speed and ambient conditions on overall system heat losses and energy output.
Use indoor experimentation capabilities with artificial light sources to ensure continuous research irrespective of outdoor weather.
