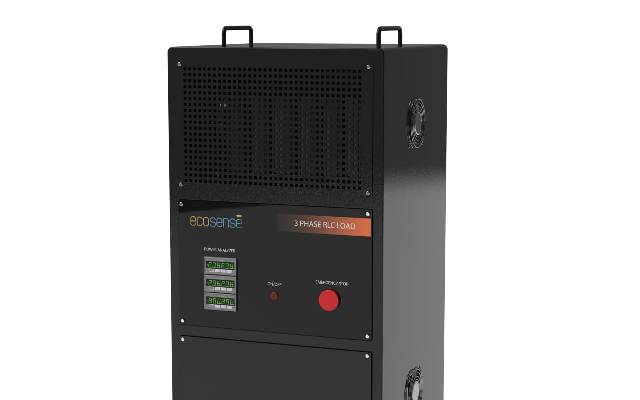

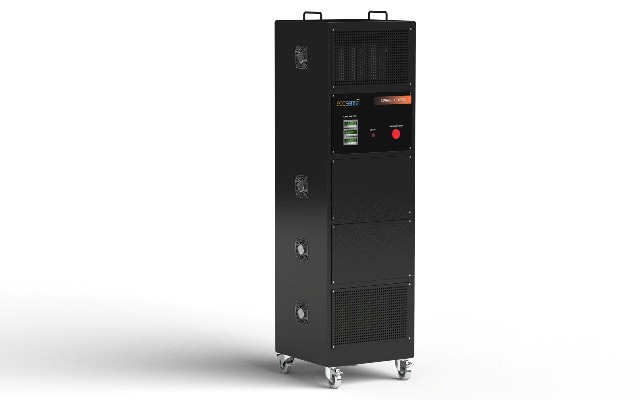

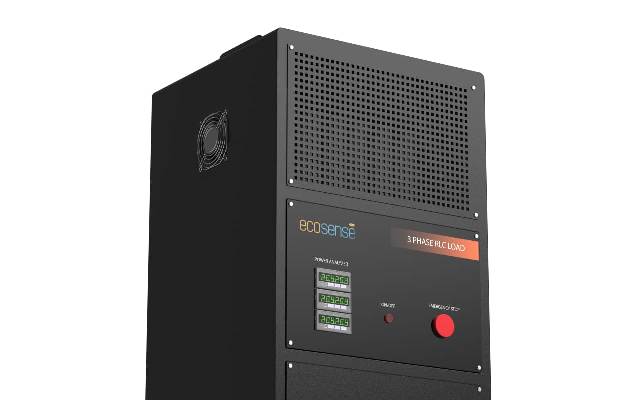

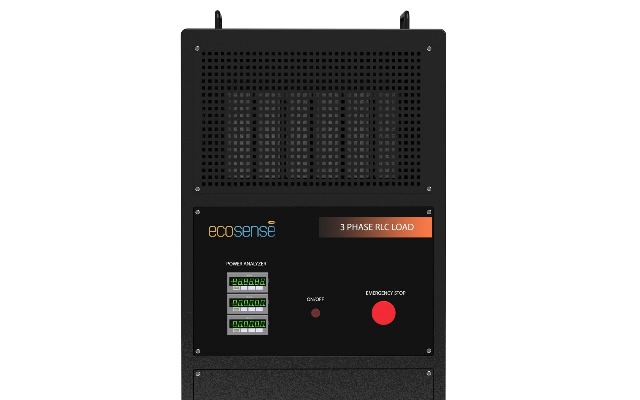

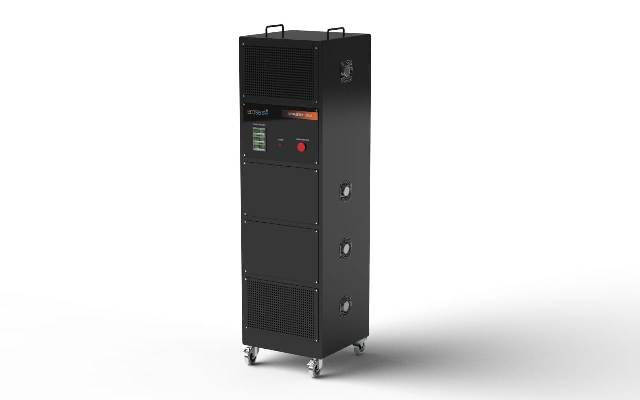

Three/Single Phase Programmable RLC Load

The Programmable Three-Phase/Single Phase RLC Load System is a hardware-based programmable load bank that uses real resistors, inductors, and capacitors to simulate a wide range of electrical loading scenarios. Controlled via a LabVIEW-based graphical user interface (GUI), the system allows users to independently set resistive (R), inductive (L), and capacitive (C) load levels by entering reference power values, offering precise and dynamic control of active and reactive loads. With built-in power measurement, harmonic analysis, and multi-point communication this platform is ideal for power systems education, energy audits, and three-phase power quality research.

Key Features

Real RLC Components
Utilizes actual physical resistors, inductors, and capacitors, ensuring realistic thermal and electrical characteristics that mimic real-world loads.
Independent R, L, and C Load Control
- Set Resistive Load via Reference Active Power input
- Set Inductive Load via Reference Reactive Power (lagging)
- Set Capacitive Load via Reference Reactive Power (leading)
- Each load type can be independently turned ON/OFF via GUI switches
Comprehensive Three-Phase Parameter Monitoring
Real-time display of:
- Line-to-Line Voltages (RY, YB, BR)
- Line-to-Neutral Voltages (RN, YN, BN)
- Line Currents (R, Y, B)
Detailed Power & Energy Measurements
- Active Power and Energy (Import/Export)
- Reactive Power and Energy (Import/Export)
- Apparent Power and Apparent Energy
Power Quality & Harmonic Monitoring
- Voltage THD for all three phases
- Current THD for all three phases
- Power Factor, Frequency, and Phase Angle
- Ideal for analyzing effects of load variation on power quality
Multi-Device Communication Support
- Connects with multiple COM ports (e.g., Arduino Mega, Uno, and 3-phase power analyzer via USB)
- Flexible integration with sensors and power monitoring devices
LabVIEW-Based GUI Interface
- Centralized and user-friendly GUI for load control and monitoring
- All critical electrical parameters displayed live
- STOP function for immediate shutdown of all loads in emergency or unsafe scenarios

Learning Module

Education & Training

Hands-on experiments for engineering students on power factor correction, phase relationships, and reactive power compensation
Demonstrate concepts like leading/lagging power factor, THD impact, and energy measurement

Research & Testing

Study behavior of generators, inverters, or UPS systems under balanced/unbalanced RLC loads
Perform harmonic distortion analysis and energy flow studies under different load combinations

System Evaluation

Validate performance of power analyzers, energy meters, and protection devices
Test and simulate industrial 3-phase load conditions for product development or audits
